User Manual

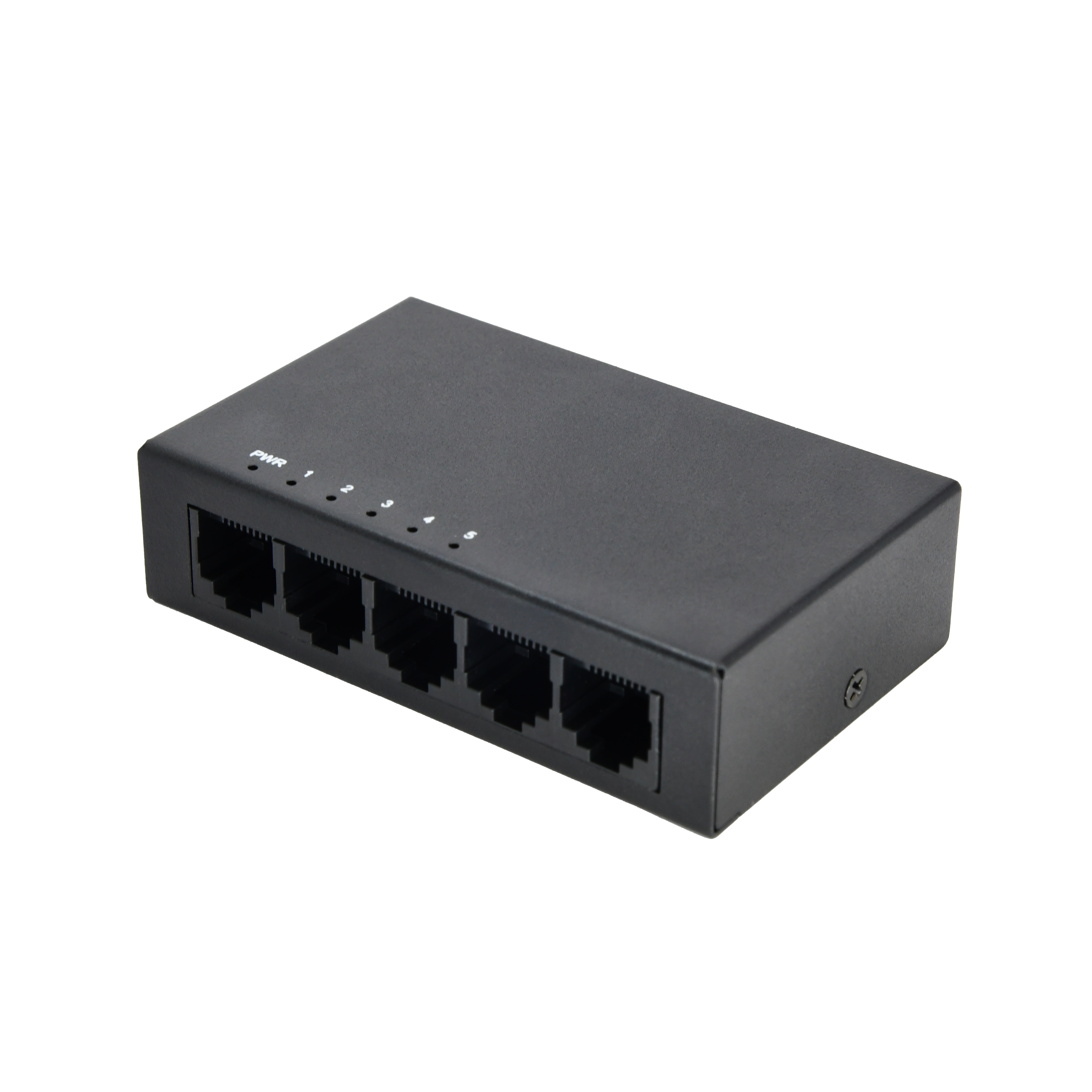

Network 5 Port Switch
SKU: PP-NTW-SWITCH-5P
W: 103 mm
H: 24mm
D: 67 mm
The RJ45 port supports automatic MDI/MDI-X operation, allowing a direct connection to a PC or server without the need for a crossover cable. In straight-through (MDI) mode, pins 1, 2, 3, and 6 correspond respectively; for switch ports supporting MDI-X, the correspondence is: 1→3, 2→6, 3→1, 6→2. The pin definitions used in MDI/MDI-X for 10Base-T/100Base-TX are shown as follows.
RJ45 Pin Definitions (MDI vs. MDI-X)
Note:
TX = Transmit data
RX = Receive data
“—” = Not used
| Pin No. | MDI Signal | MDI-X Signal |
|---|---|---|
| 1 | TX+ | RX+ |
| 2 | TX- | RX− |
| 3 | RX+ | TX+ |
| 6 | RX− | TX− |
| 4-5-7-8 | — | — |
| LED Indicators | Yes |
| Operating Temperature | +32°F - +104°F |
| Operating Temperature (°C) | 0°C - +40°C |
| Operating Humidity | 10% - 90% RH Non condensing % RH |
| IP Rating | IP30 |
| Safety Features | Overload, Over Voltage, Short Circuit, Thermal Protection, Surge Protection |
| Power Supply | DC 5V 1A |
| Connectivity | 10M/100M/1000M Ethernet RJ45 |
| Transfer Mode | Store & Forward |
| Communication Mode | Full-Duplex, Half-Duplex |
| Ports | 8x 10/100/1000Mbps RJ45 |
| Switch Capacity | 10Gbps |
| PoE Support | No |
| Panel Material | Metal |
| Product Color | Black |
| Mounting Type | Desktop |
