Power Supply 24V/0.625A (DIN)
User Manual

Power Supply 24V/0.625A (DIN)

SKU: PP-PWR-24V-0625A-DIN

Table of Contents

1. What you need

Wired. Mains AC input, DIN-rail mounted. Provides 24 V DC for PIERRE devices that need a 24 V supply; size the supply to the total current of everything connected.

2. Technical Specifications

Technical Specifications

Environmental

Operating Temperature -40°F - +140°F
Operating Temperature (°C) -20 to +70
Storage Temperature -40°F to +185°F
IP Rating IP20

Features

LED Indicators Yes

Physical

Panel Material ABS plastic
Product Color White
Mounting Type DIN Rail
Wiring Requirements N - Neutral

Electrical

Efficiency 86 %
Power Factor 0.98
Current 0.63 A

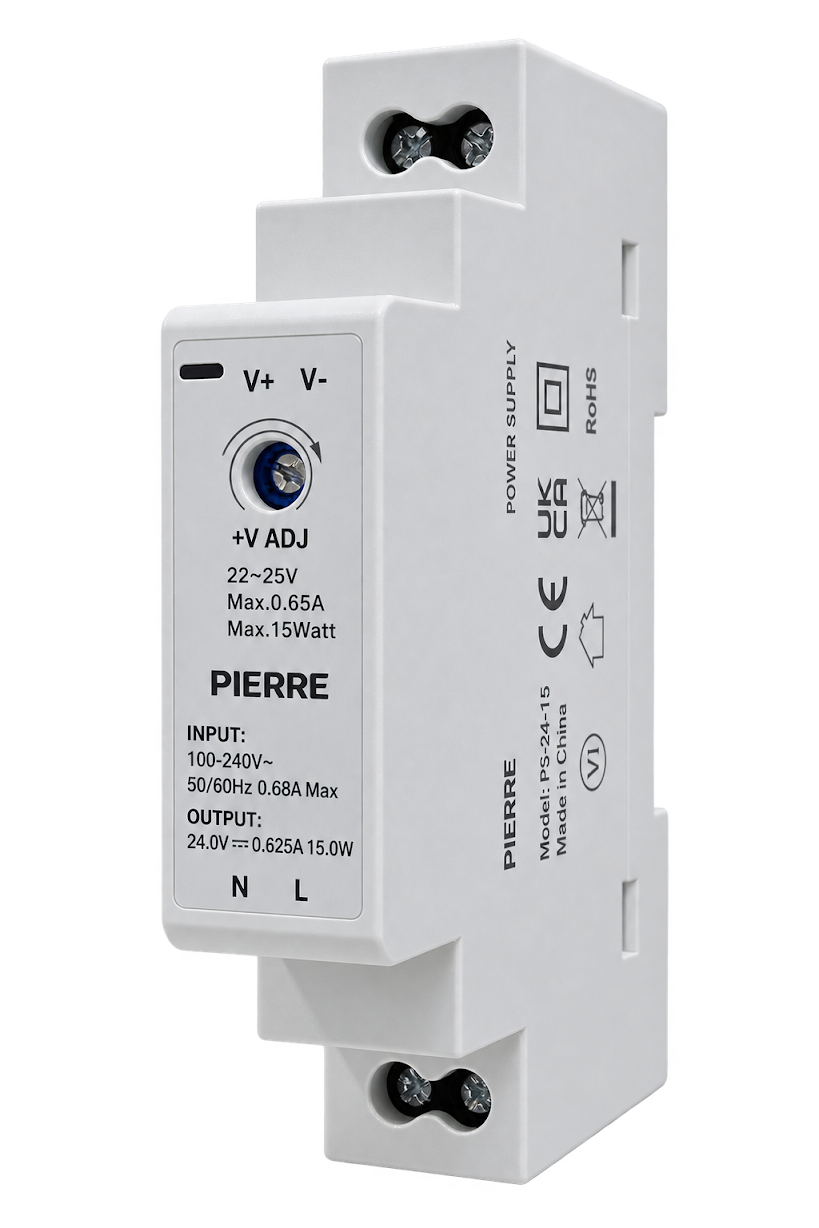

3. Product Description

  1. V+, V-
  2. Upper connectors (green, black) - OUTPUT
  3. Voltage adjustment potentiometer
  4. DIN rail mounting
  5. Lower connectors (brown, blue) - INPUT
  6. N, L

4. Dimensions

  • H: 90 mm
  • D: 58 mm
  • W: 18 mm

5. Wiring

  • Connect the AC input terminals to mains power: L (Live) and N (Neutral).
  • The output terminals V+ and V− supply 24 V DC. Connect V+ to the 24 V input of the device and V− to its GND.
  • Use the correct conductor cross-section and double-check polarity to avoid damaging connected devices.

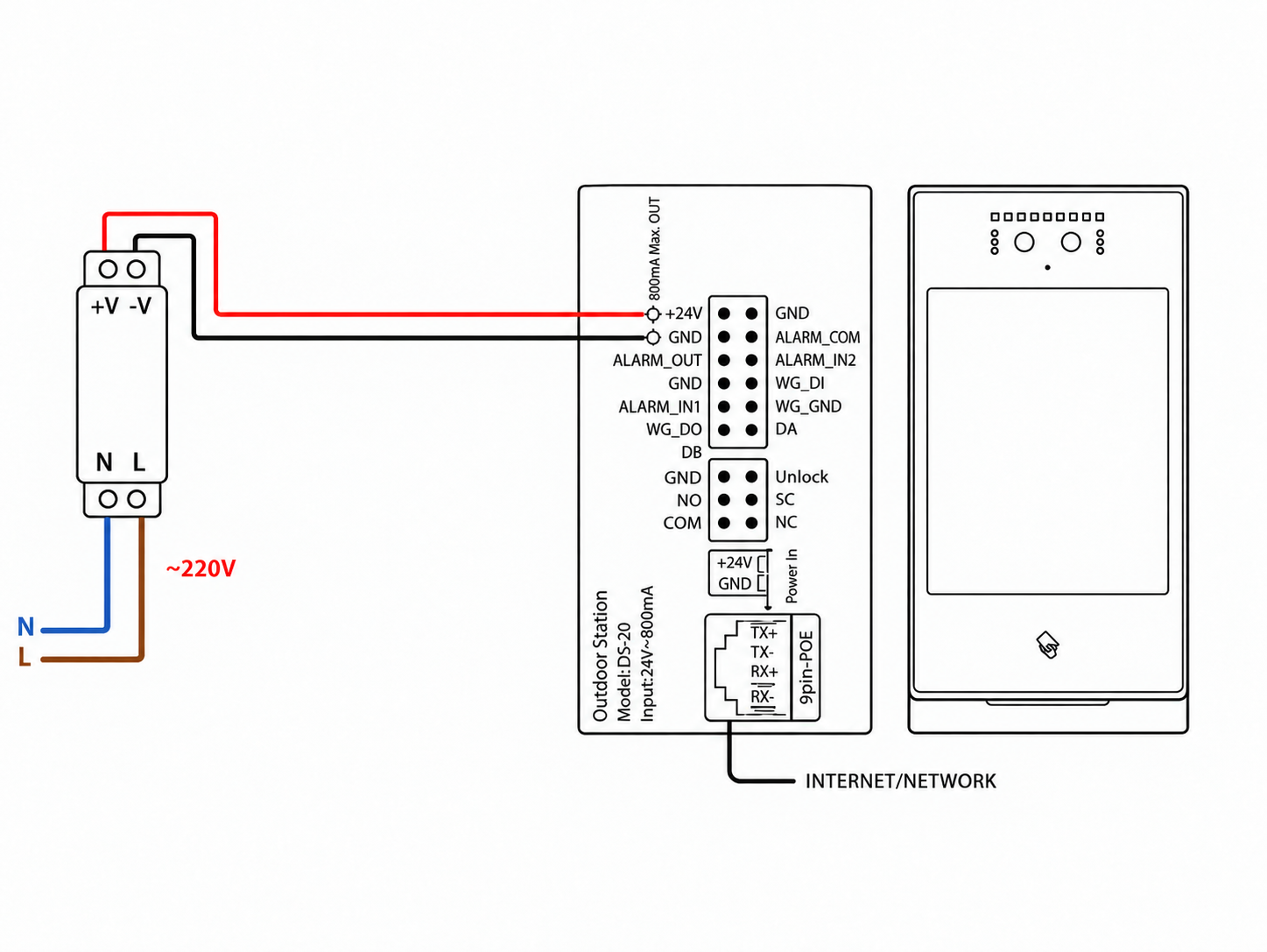

  • Example wiring: from power supply to a 24 V device.
Run Wires Cross-section Cable type Conductors
Example: From power supply to 24 V device 2 0.75 mm² NYM-J +24 V, GND

6. Functional Diagram


Functional Diagram – System Overview

The diagram shows the internal stages of a switching mode power supply (SMPS) from AC input to regulated DC output.

Block descriptions:

  • I/P (Input): AC mains voltage is supplied to the power supply.
  • EMI Filter: attenuates conducted and radiated electromagnetic interference and protects downstream components.
  • Rectifiers & Filter (primary side): converts AC to DC and smooths the rectified voltage with capacitive filtering.
  • Power Switching Stage: a high-frequency switching converter (typically a MOSFET) chops the DC voltage to drive the transformer; switching is controlled by PWM (pulse width modulation).
  • Transformer: provides galvanic isolation between input and output and steps the voltage up or down.
  • Rectifiers & Filter (secondary side): converts the high-frequency AC from the transformer back to DC and filters ripple and noise. Delivers the output rails +V and –V.
  • Detection Circuit: monitors the output voltage and generates the feedback for regulation.
  • Control Circuit: processes the feedback and adjusts the switching duty cycle for a stable DC output.
  • O.L.P. (Over Load Protection): detects overload or short circuit on the output and limits the current or shuts the converter down.
  • O.V.P. (Over Voltage Protection): disables the power supply if the output voltage exceeds the set limit.

7. Derating Curve

  1. Load (%)
  2. Ambient Temperature (°C)

8. Output Derating vs Input Voltage

  1. Load (%)
  2. Input voltage (V AC), 60 Hz
