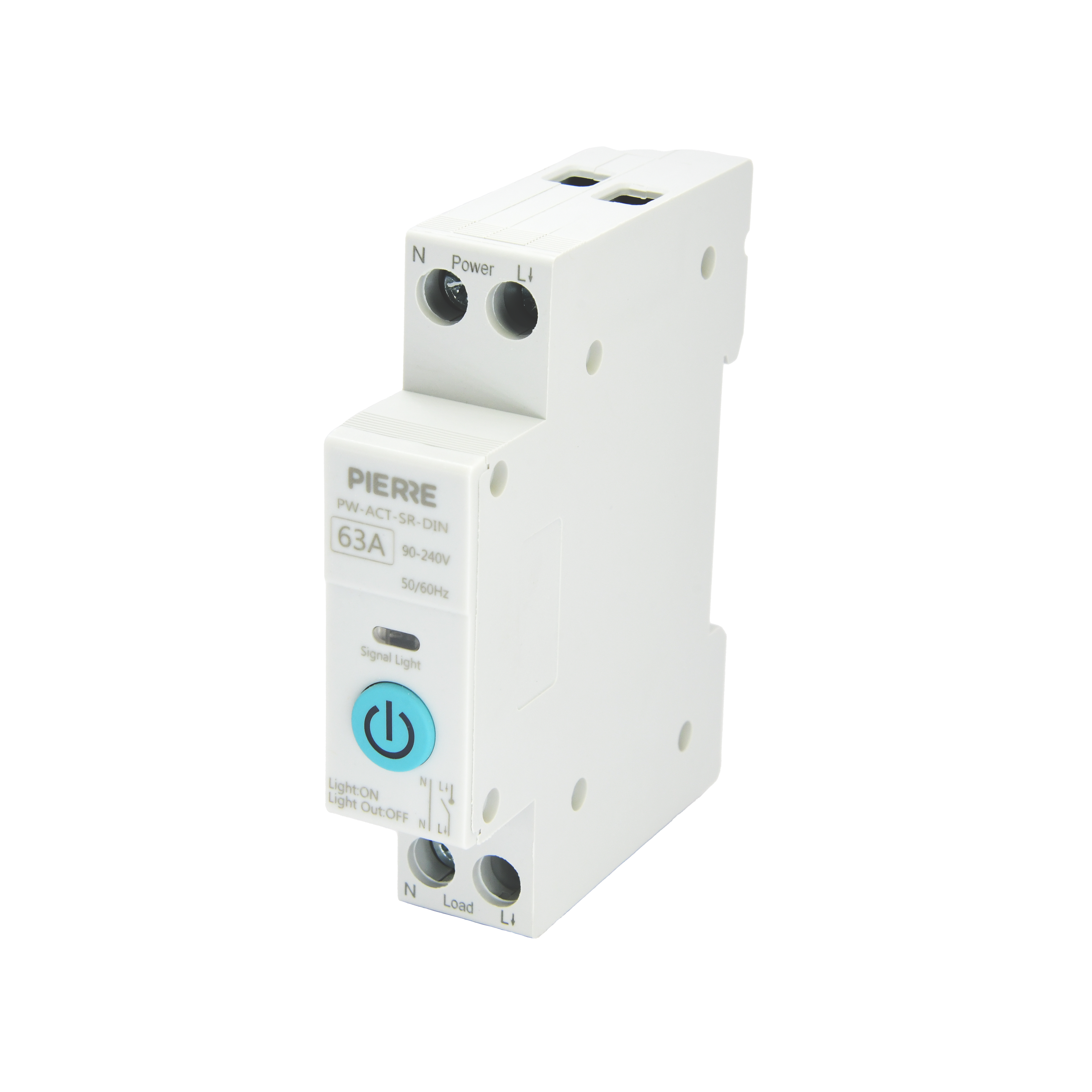

Smart Relay (DIN)

1. Product Description

N Pole
L Pole
Rated Current
Model Number
LED indicator
Button Switch
Circuit Diagram

2. Product Size

W: 18 mm

H: 82 mm

D: 51 mm

35 mm

3. System requirements

The PIERRE Wave (Zigbee 3.0, 2.4 GHz) system consists of the following components.

Required

PIERRE Wave products: switches, modules, sensors, thermostats and other devices. They connect wirelessly to the gateway.
Gateway: a PIERRE display and/or gateway. It links all PIERRE Wave devices and handles the communication with the app.

Optional

Smart PIERRE app: control and monitoring from a smartphone or tablet. Not required for basic operation.
Router: gives the gateway internet access for remote control.

Operation: the gateway connects to the router by Wi-Fi or LAN. PIERRE Wave products communicate wirelessly with the gateway in both directions: commands are sent and status updates are received through the Smart PIERRE app.

What you need

Zigbee gateway: a PIERRE display and/or gateway. One of those must already be commissioned before the device can be added.

4. Technical Specification

Technical Specifications

Connectivity

Zigbee

Features

LED Indicators

Yes

Environmental

Operating Temperature	+14°F ～ +131°F
Operating Temperature (°C)	-10°C ～ +55°C
IP Rating	IP20

Safety

Safety Features

Overload, Short Circuit, Thermal Protection, Surge Protection

Electrical

Power Supply	90-240V AC 50-60Hz
Current	63.0 A
Over Voltage Range	240V – 295V
Under Voltage Range	90V - 220V

Control

Number of Channels

1 channel

Physical

Panel Material	PA66 polyamid
Product Color	White
Mounting Type	DIN
Wiring Requirements	N - Neutral, L - Line

5. Safety Instructions

Installation must be performed by a qualified electrician.
Always disconnect the mains power supply before wiring or maintenance.
Ensure the maximum rated current (63 A) is not exceeded.
The relay must be installed in a dry, ventilated environment on a DIN rail.
Do not cover the ventilation openings.
Comply with local electrical regulations.

6. Installation

Mount the relay securely on a DIN rail.
Connect L (Live) and N (Neutral) from the mains to the upper terminals marked Power.
Connect the load (e.g. water heater, convector, radiator) to the lower terminals marked Load.
N → Neutral to the load
L → Live to the load
Tighten all screws and verify the connections.
Switch on the mains power and check the LED indicator.

Diagram reference:

Water heater
Convector heater
Radiator

7. LED Indicator Description

The LED indicator flashing blue indicates the network pairing mode

The LED indicator solid blue shows the switch is on

The LED off indicates the switch is off

8. Cable and wiring

Run	Wires	Cross-section	Cable type	Conductors
From distribution board to smart relay	2	1.5 mm²	NYM-O	L, N
From smart relay to load	2	1.5 mm²	NYM-O	L, N

Two runs, two conductors each. The first brings the supply from the distribution board into the relay; the second carries the switched output from the relay to the load. Both are line and neutral only — no signal wire, because the relay is commanded over Zigbee rather than by a physical input.
