User Manual

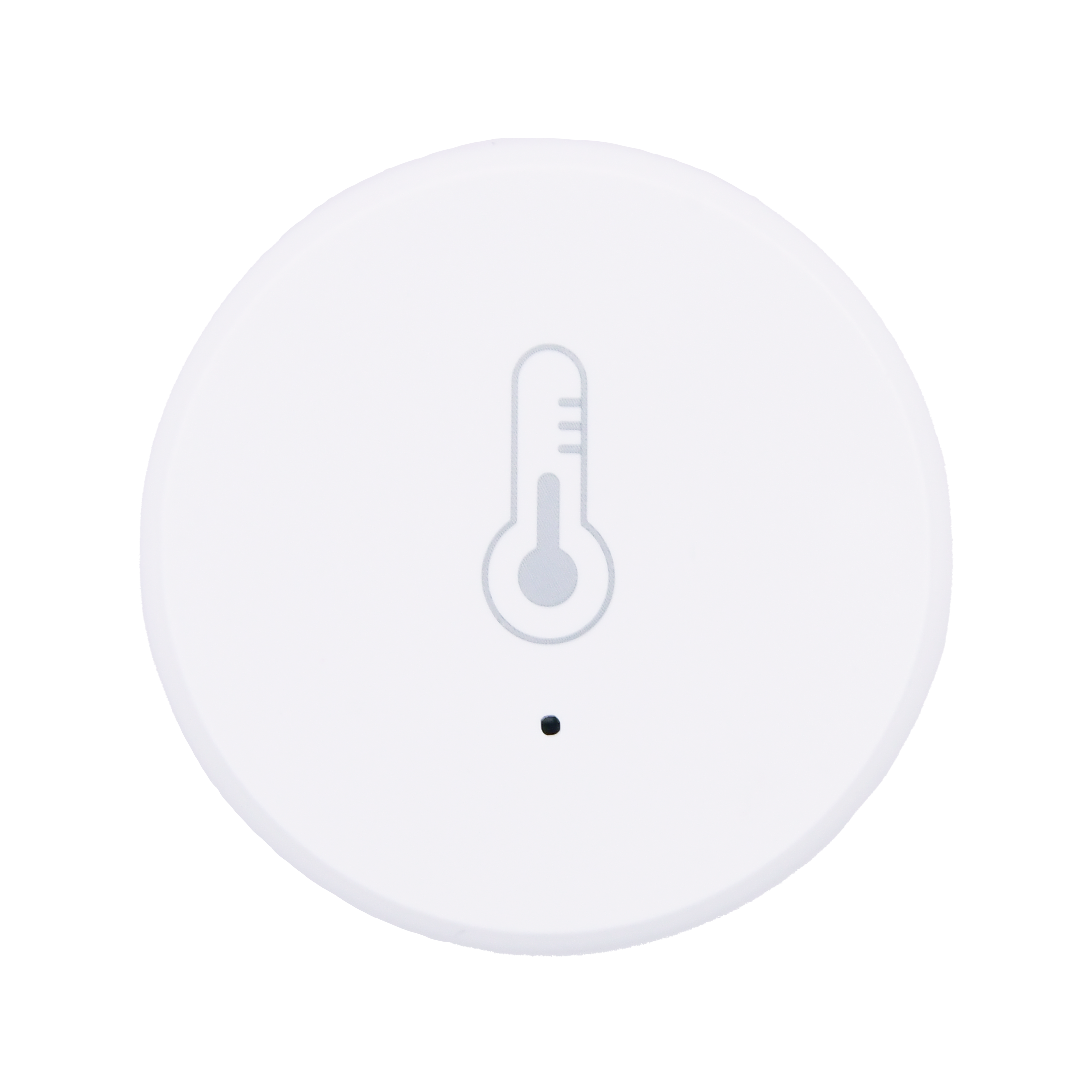

Temperature and Humidity Sensor
SKU: PW-SNS-TEMP1
H: 40 mm
W: 13 mm
The PIERRE Wave (Zigbee 3.0, 2.4 GHz) system consists of the following components.
Required
Optional
Operation: the gateway connects to the router by Wi-Fi or LAN. PIERRE Wave products communicate wirelessly with the gateway in both directions: commands are sent and status updates are received through the Smart PIERRE app.
| Power Supply | CR2450 Battery |
| Frequency | 2.4GHz-2.484GHz |
| Connectivity | Zigbee |
| LED Indicators | Yes |
| Low Battery Indication | Yes |
| Safety Features | Battery low cut-off, Thermal protection, Anti-flammable housing |
| Built-in Sensors | Temperature, Humidity |
| Temperature Accuracy | ±0.30°C |
| Humidity Accuracy | ±0.30% |
| Operating Humidity | ≤95 % RH |
| Panel Material | ABS plastic |
| Product Color | White |
Remove the protective film.
Place it directly at the desired location.
Please scan the QR code to download PIERRE application
Log in with your Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the Indicator Light starts flashing
Press "Find Devices"
PIERRE application will show the list of available devices. Press "Add found devices"
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
Commissioning walkthrough for the Wave temperature and humidity sensor. https://www.youtube.com/watch?v=sy6ix_zDCwM
At eye level (about 1.5 m), away from draughts, direct sunlight, heat sources and external walls.
One per room or zone where you want to measure or control temperature and humidity.
Not always. Calibrate if the reading disagrees with a reference thermometer, or if the sensor sits where electronics, sunlight or poor airflow affect it. In the Smart PIERRE app an offset can be set for the temperature and humidity values.
Where moisture matters most (bathroom, kitchen, cellar), at head height and in free air. Do not hide it behind furniture or in a cavity; it needs airflow to measure correctly.
