User Manual

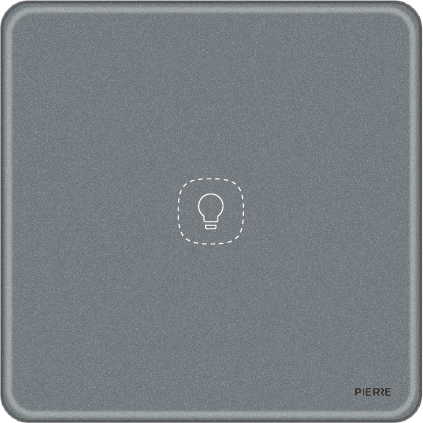

Rounded Series 1 Gang Light Switch - Grey (no Neutral)
SKU: PW-SWI-L-1G-L-GRY-R
A PIERRE Wave (Zigbee 3.0, 2.4 GHz) gateway: a PIERRE display and/or gateway.
PIERRE Wave 1-gang light switch (no neutral) - wiring diagram
| Run | Wires | Cross-section | Cable type | Conductors |
|---|---|---|---|---|
| From electric box to light switch wall box | 1 | 1.5 mm² | NYM-O | L |
| From light switch to light | 1 | 1.5 mm² | NYM-O | L1 (switched live) |
Scan the QR code to download the Smart PIERRE app.
Log in with your username and password.
Open Settings and press "Add Wave I/O".
Press "Find Devices"
Video: how to install and configure a PIERRE Wave two-gang light switch. The steps are the same for the one-gang switch. https://www.youtube.com/watch?v=zXz-0DQyTSo
