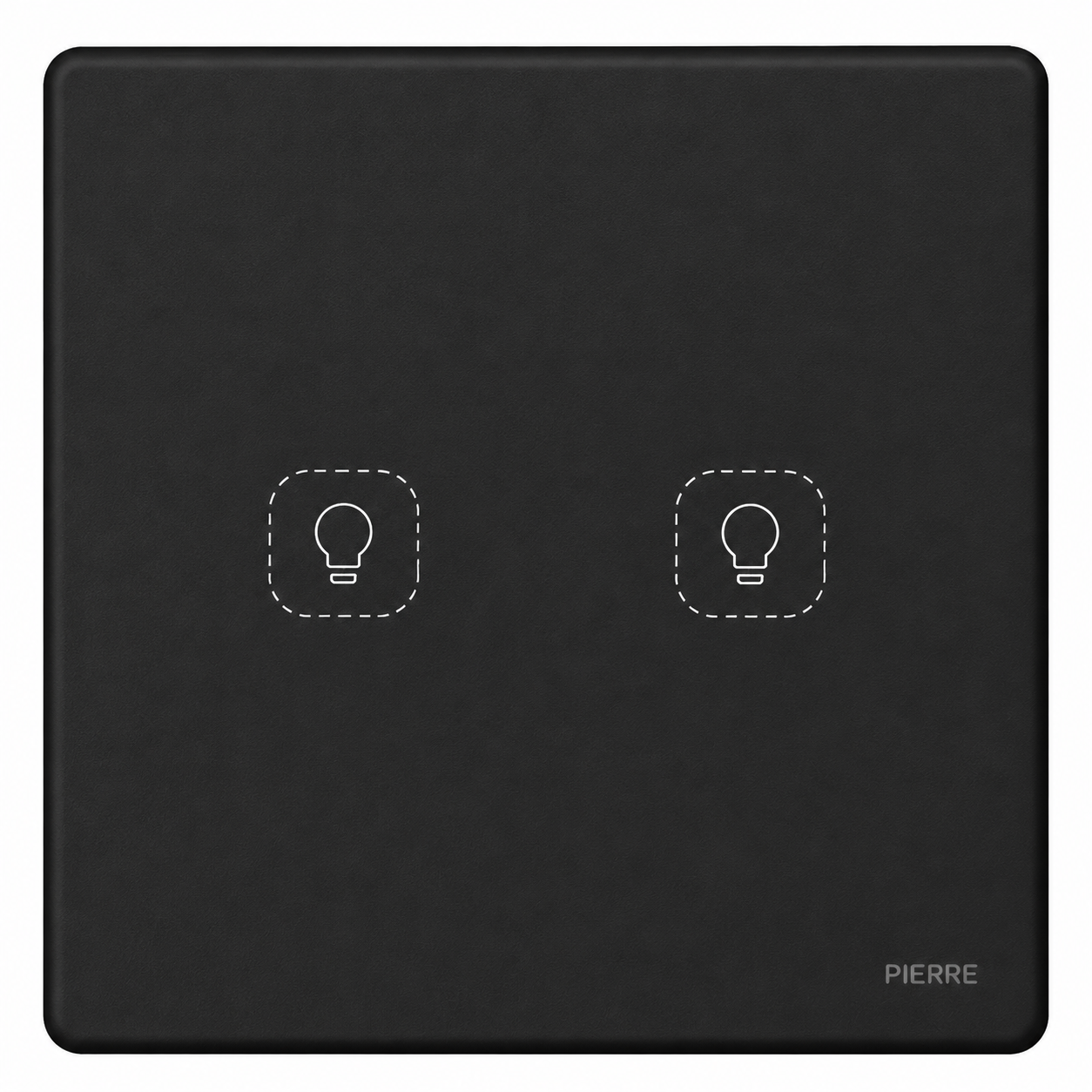

Rounded Series 2 Gang Light Switch - Black (no Neutral)
User Manual

Rounded Series 2 Gang Light Switch - Black (no Neutral)

SKU: PW-SWI-L-2G-L-BLK-R

Table of Contents

1. System requirements


The PIERRE Wave (Zigbee 3.0, 2.4 GHz) system consists of the following components.

Required

  1. PIERRE Wave products: switches, modules, sensors, thermostats and other devices. They connect wirelessly to the gateway.
  2. Gateway: a PIERRE display and/or gateway. It links all PIERRE Wave devices and handles the communication with the app.

Optional

  1. Smart PIERRE app: control and monitoring from a smartphone or tablet. Not required for basic operation.
  2. Router: gives the gateway internet access for remote control.

Operation: the gateway connects to the router by Wi-Fi or LAN. PIERRE Wave products communicate wirelessly with the gateway in both directions: commands are sent and status updates are received through the Smart PIERRE app.

What you need

A PIERRE Wave (Zigbee 3.0, 2.4 GHz) gateway: a PIERRE display and/or gateway.

2. Wiring


PIERRE Wave 2-gang light switch (no neutral) - wiring diagram

Run Wires Cross-section Cable type Conductors
From electric box to light switch wall box 1 1.5 mm² NYM-O L
From light switch to lights 2 1.5 mm² NYM-O L1, L2 (switched lives)

3. App-to-Device Pairing


Scan the QR code to download the Smart PIERRE app.


Log in with your username and password.


Open Settings and press "Add Wave I/O"


Press "Find Devices"

4. Video

Video: how to install and configure a PIERRE Wave two-gang light switch. https://www.youtube.com/watch?v=zXz-0DQyTSo
