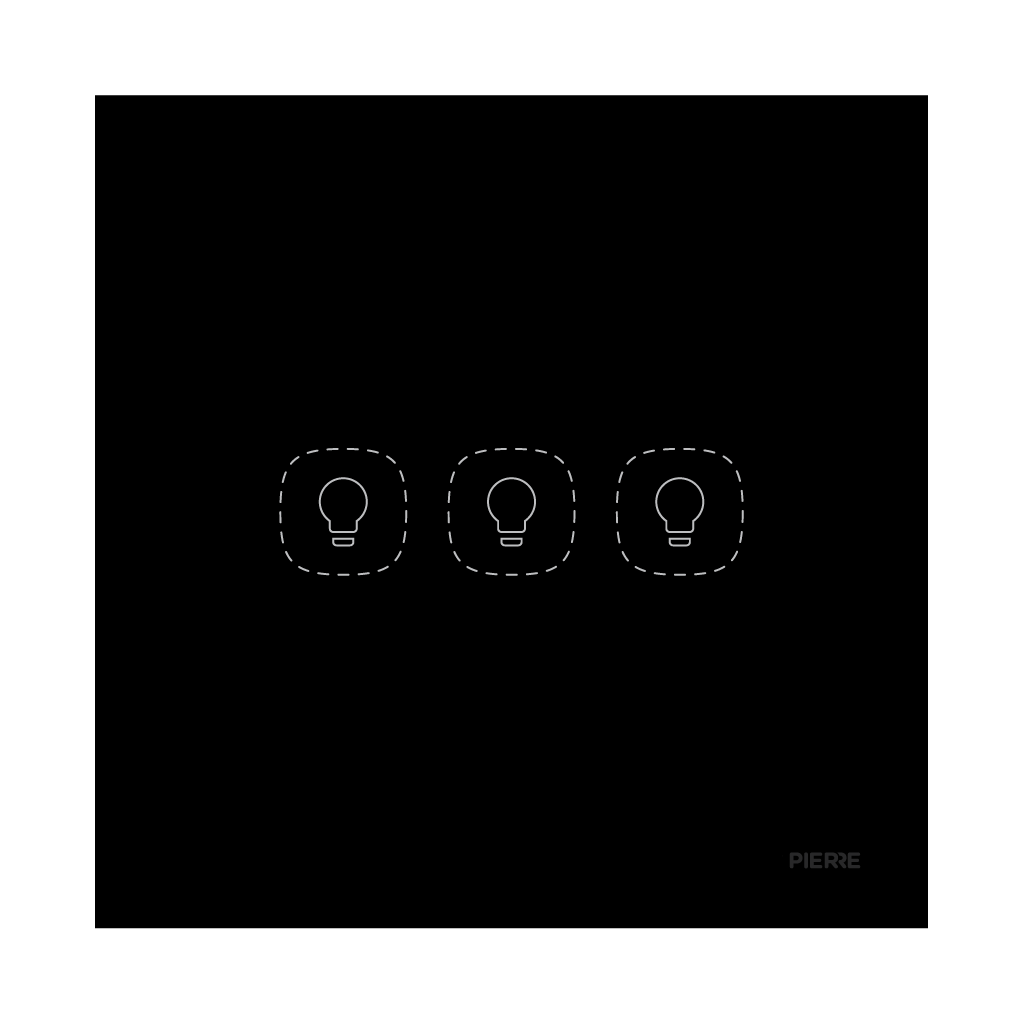

Flat Series 3 Gang Light Switch - Black (no Neutral)

1. System requirements

The PIERRE Wave (Zigbee 3.0, 2.4 GHz) system consists of the following components.

Required

PIERRE Wave products: switches, modules, sensors, thermostats and other devices. They connect wirelessly to the gateway.
Gateway: a PIERRE display and/or gateway. It links all PIERRE Wave devices and handles the communication with the app.

Optional

Smart PIERRE app: control and monitoring from a smartphone or tablet. Not required for basic operation.
Router: gives the gateway internet access for remote control.

Operation: the gateway connects to the router by Wi-Fi or LAN. PIERRE Wave products communicate wirelessly with the gateway in both directions: commands are sent and status updates are received through the Smart PIERRE app.

What you need

A PIERRE Wave (Zigbee 3.0, 2.4 GHz) gateway: a PIERRE display and/or gateway.

2. Wiring

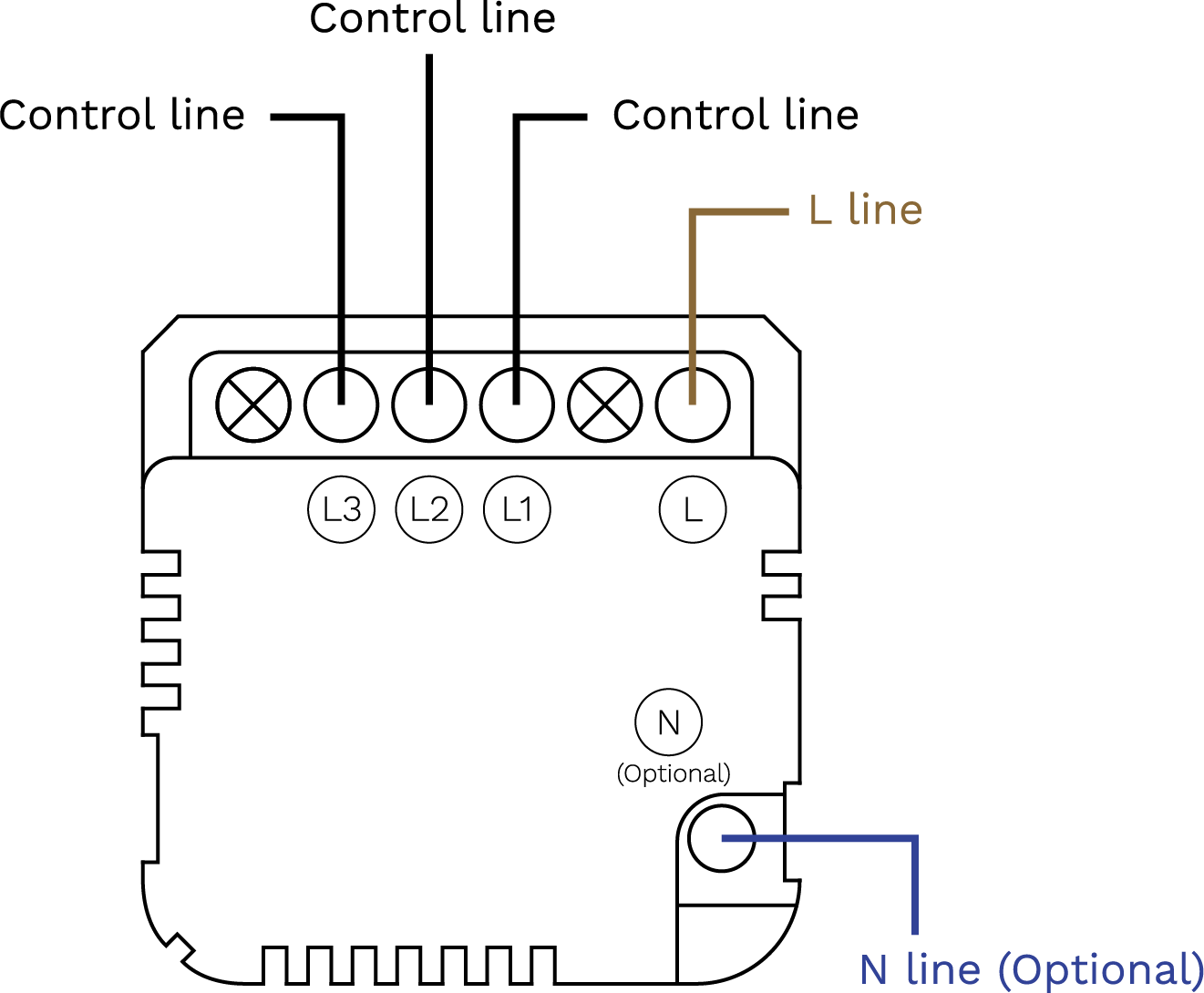

3 Gang Light Switch Wiring (no neutral)

Run	Wires	Cross-section	Cable type	Conductors
From Electric box to Light switch	1	1.5 mm²	NYM-O	L (no neutral at the switch; the neutral runs from the electric box directly to the lamp)
From Light switch to lamps	3	1 mm²	NYM-O	L1, L2, L3 (switched lines)

3. App-to-Device Pairing

Scan the QR code to download the Smart PIERRE app.

Log in with your Username and Password

Open Settings and press "Add Wave I/O"

Put the switch into pairing mode: press and hold the Reset Key for 10 seconds (use a small, thin object such as a paperclip) until the indicator light starts flashing.

Press "Find Devices".

The app shows the list of available devices. Press "Add found devices".

Enter Name, Role and Group and press Save.

When the indicator light stops flashing, the pairing process is finished.

4. Video

How to install and configure a PIERRE Wave light switch (the video shows the two-gang model; the steps are the same for the 3 gang model; the no-neutral wiring differs, see the Wiring section). https://www.youtube.com/watch?v=zXz-0DQyTSo
