User Manual

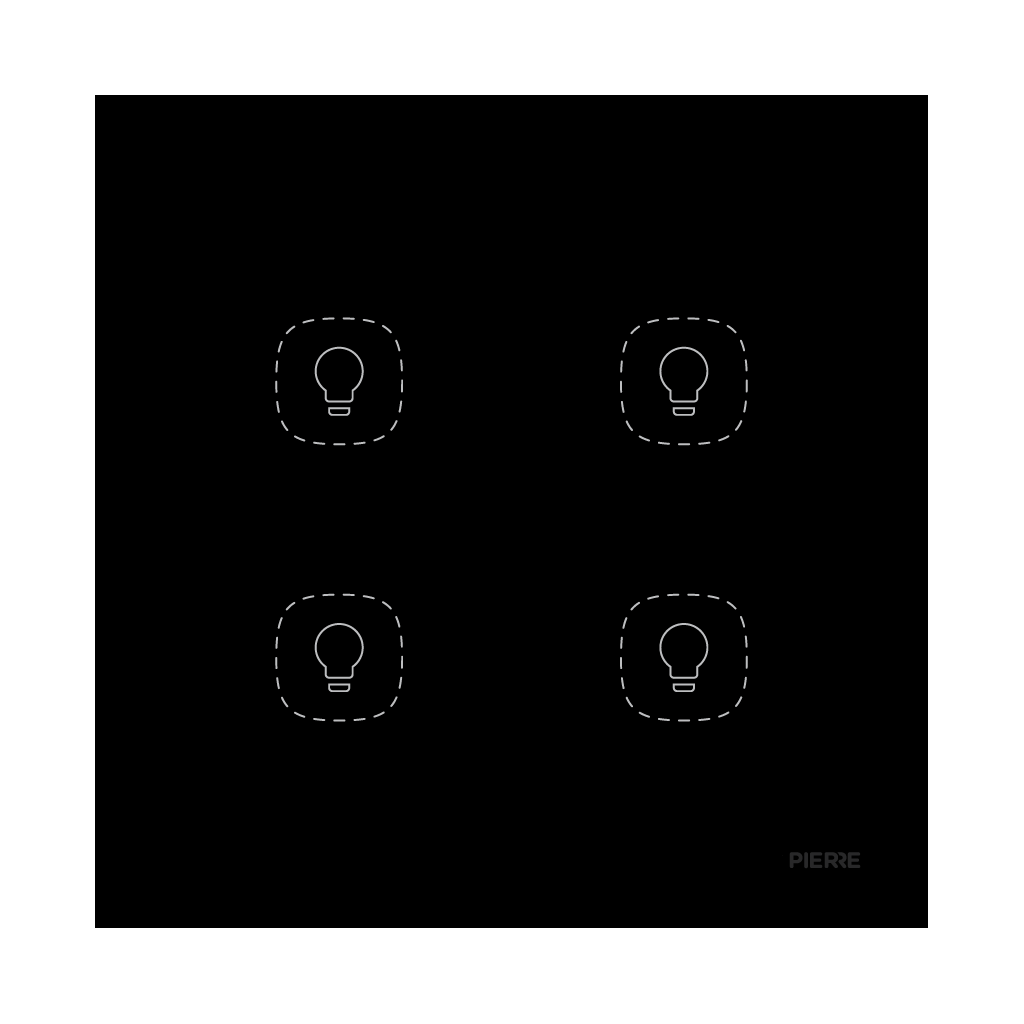

Flat Series 4 Gang Light Switch - Black (L+N)
SKU: PW-SWI-L-4G-LN-BLK-F
The PIERRE Wave (Zigbee 3.0, 2.4 GHz) system consists of the following components.
Required
Optional
Operation: the gateway connects to the router by Wi-Fi or LAN. PIERRE Wave products communicate wirelessly with the gateway in both directions: commands are sent and status updates are received through the Smart PIERRE app.
A PIERRE Wave (Zigbee 3.0, 2.4 GHz) gateway: a PIERRE display and/or gateway.

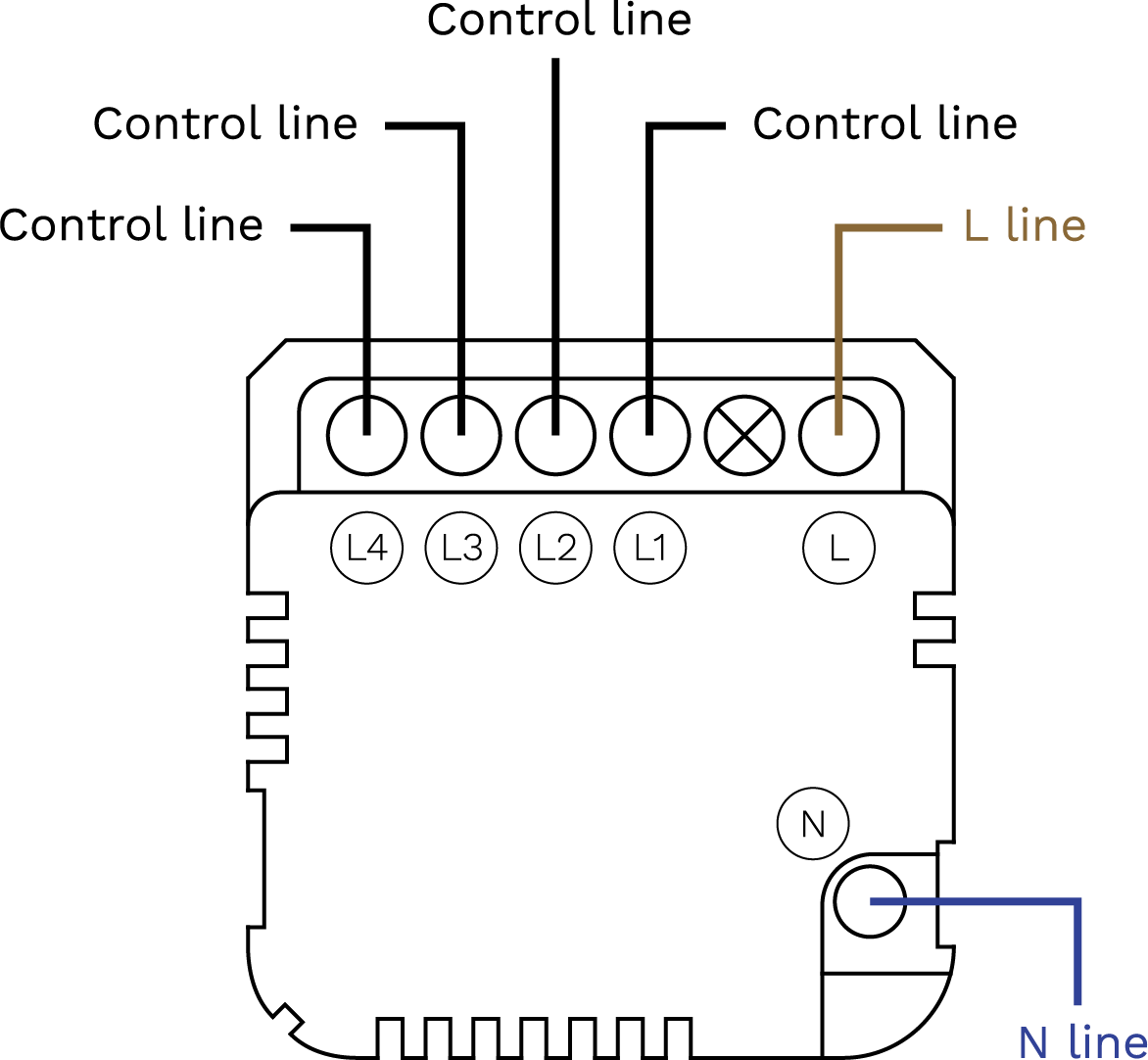

4 Gang Light Switch Wiring (L+N)
| Run | Wires | Cross-section | Cable type | Conductors |
|---|---|---|---|---|
| From Electric box to Light switch | 2 | 1.5 mm² | NYM-O | L, N |
| From Light switch to lamps | 4 | 1 mm² | NYM-O | L1, L2, L3, L4 (switched lines; the neutral to each lamp is wired directly from the electric box) |
Scan the QR code to download the Smart PIERRE app.
Log in with your Username and Password
Open Settings and press "Add Wave I/O"
Press and hold the Reset Key for 10 seconds (use a small, thin object like a paperclip) until the indicator light starts flashing.
Press "Find Devices"
The Smart PIERRE app shows the list of available devices. Press "Add found devices".
Enter Name, Role and Group settings and Save it
When the Light indicator stops flashing, the PIERRE Wave pairing process is finished
How to install and configure a PIERRE Wave light switch (the video shows the two-gang model; the steps are the same for the 4 gang model). https://www.youtube.com/watch?v=zXz-0DQyTSo
